Cummins Engine part 3635074/3627295/3177235/205615 Cooler Core for Cummins K50 Engine.

Short Description:

Cummins genuine Cooler Core with replacement part number 3635074/3627295/3177235/205615 for Cummins Engine G50, K50, K50-DPM, QSK50 CM2150 K107, QSK50 CM2150 MCRS, QSK50 CM2350 K108, QSK50 CM850 MCRS, QSK50 DF CM850/CM2150 MCRS.

Send email to us

Product Detail

Product Tags

Company Introduction

Raptors, the authorized dealer of Cummins (China), established in 2015 by Mr. Jordan Wang who worked in Cummins (China) for 8 years, Please check the certificate per attached. We can supply all the genuine Cummins generators, engine and spare parts, especially NTA855, KTA19, KTA38, KTA50, QSK60, QST30, QSX15, etc...We also have good resources for Fleetguard and Donaldson filters.

Our business scopes:

1, Cummins generators, engine assembly and genuine spare parts

2, Shanghai Fleetguard filters and US Fleetguard filters, also the genuine Donaldson Filters.

3, HOLSET turbocharger series

4, China NHL/Terex parts series

5, China construction machinery parts

Product Parameter

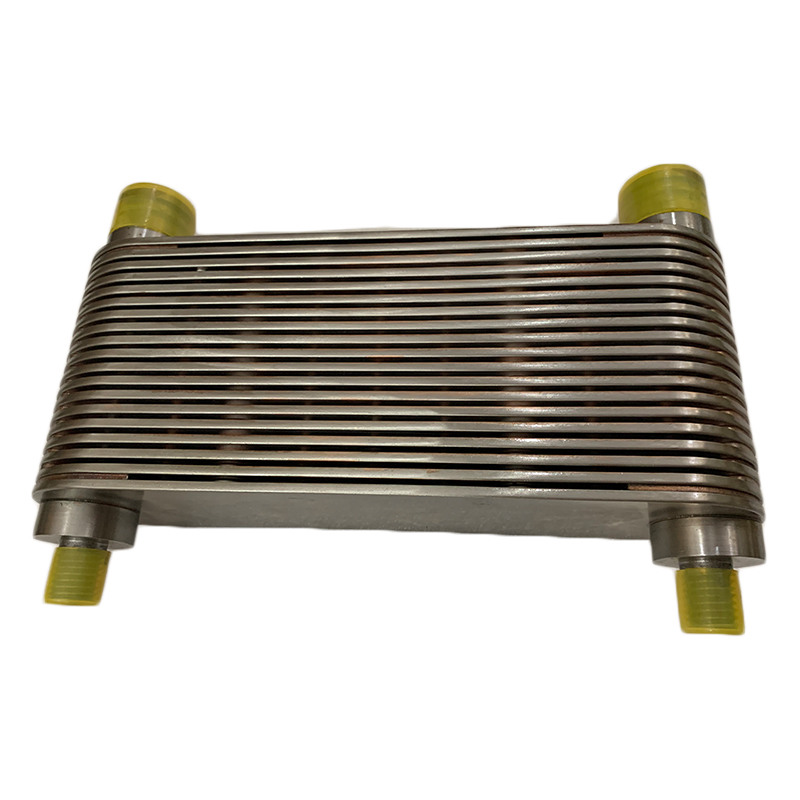

Part name:	Cooler Core
Part number:	3635074/3627295/3177235/205615
Brand:	Cummins
Warranty:	6 months
Material:	Metal
Color:	Silver
Packing:	Cummins Packing
\Feature:	Genuine & Brand New
Stock situation:	10 pieces in stock;
Unit weight:	7.5kg
Size:	232134cm

The composition and function of the cooler core

The composition of cooler core: The oil cooler consists of an aluminum alloy cast casing, front cover, rear cover and copper core tube. In order to enhance cooling, heat sinks are installed on the outside of the tube. The cooling water flows outside the tube, the lubricating oil flows inside the tube, and the two exchange heat. There are also structures that allow oil to flow outside the tube and water to flow inside the tube.

The function of cooler core:The function of the oil cooler is to cool the lubricating oil and keep the oil temperature within the normal working range. On a high-power reinforced engine, an oil cooler must be installed due to the large thermal load. When the engine is running, the lubricating capacity is reduced due to the thinning of the oil viscosity with increasing temperature. Therefore, some engines are equipped with oil coolers, whose function is to reduce the temperature of the oil and maintain a certain viscosity of the lubricating oil. The oil cooler is arranged in the circulating oil circuit of the lubrication system.

The oil cooler is placed in the cooling water circuit, and the temperature of the cooling water is used to control the temperature of the lubricating oil. When the temperature of the lubricating oil is high, it is cooled by the cooling water, and when the engine is started, the heat is absorbed from the cooling water to rapidly increase the temperature of the lubricating oil.

Product Application

Cummins engines are mainly used in heavy vehicles, large buses, construction machinery, mining machinery, petroleum machinery, rail machinery, port machinery, fixed and mobile diesel generator set power station, marine propulsion power set and auxiliary power set.
