Cummins NTA855 Engine Assembly

Short Description:

Description: Cummins NTA855 Engine Assembly, genuine and brand new. Cummins NTA855 engine is an engine produced by Chongqing Cummins, which is called CCEC.


Product Detail

Product Tags

Porduct application

NTA855 has many uses. It can be equipped with generator sets. For example, it can be equipped with generator sets for ships. It can also be equipped with vehicles. If equipped with vehicles, it is mainly construction machinery, bulldozers, excavators, cranes, etc.

For example

Cummins engine for 240kW generator set NT855-G6
Cummins engine used for domestic general purpose ship NT855-M240/NT855-M270/ NT855-M300/NTA855-M350/NTA855-M320/NTA855-M400
Cummins engine for power drive diesel engine NTA855-P320
Cummins engine for D80/D85/T180A bulldozer NT855-C280
Cummins engine for 200KW , 60HZ marine generator set NTA855-G1(M)
Cummins engine for 200kW generator set NTA855-G1

Now we take NTA855-G1 as an example, analyze the specific parameters of this engine

NTA855-G1 Cummins engine parameters

Engine performance parameters

STANDBY ENGINE

PRIME ENGINE



60HZ

50HZ

60HZ

50HZ

Engine speed r/min

1800

1500

1800

1500

Output Power kW(BHP)

317

265

287

240

Mean effective pressure kPa(psi)

1510

1510

1358

1379

Piston average speed m/s(ft/min)

9.1

7.6

9.1

7.6

Maximum parasitic power Kw(HP)

44

33

44

33

Cooling water flow L/s(US gpm)

7.8

6.4

7.8

6.4

Engine parameters with dry exhaust pipe:
Engine net power kW(BHP)

302

256

272

231

Intake air flow L/s(cfm)

463

345

425

321

Exhaust gas temperature ℃(℉)

543

541

460

532

Exhaust air flow L/s(cfm)

1253

949

1029

878

Radiant heat energy kWm(BTU/min)

50

41

45

37

Cooling water takes away heat kWm(BTU/min)

202

169

183

153

Exhaust takes away heat kWm(BTU/min)

281

233

259

207

Fan air flow L/s(cfm)

9808

8161

9808

8161

Engine parameters with wet exhaust pipe
Engine net power kW(BHP)

302

256

272

231

Intake air flow L/s(cfm)

463

326

425

302

Exhaust gas temperature ℃(℉)

496

552

474

510

Exhaust air flow L/s(cfm)

1053

852

1029

753

Radiant heat energy kWm(BTU/min)

41

34

38

31

Cooling water takes away heat kWm(BTU/min)

247

206

223

187

Exhaust takes away heat kWm(BTU/min)

255

207

220

185

Fan air flow L/s(cfm)

9808

8161

9808

8161

Product Pictures

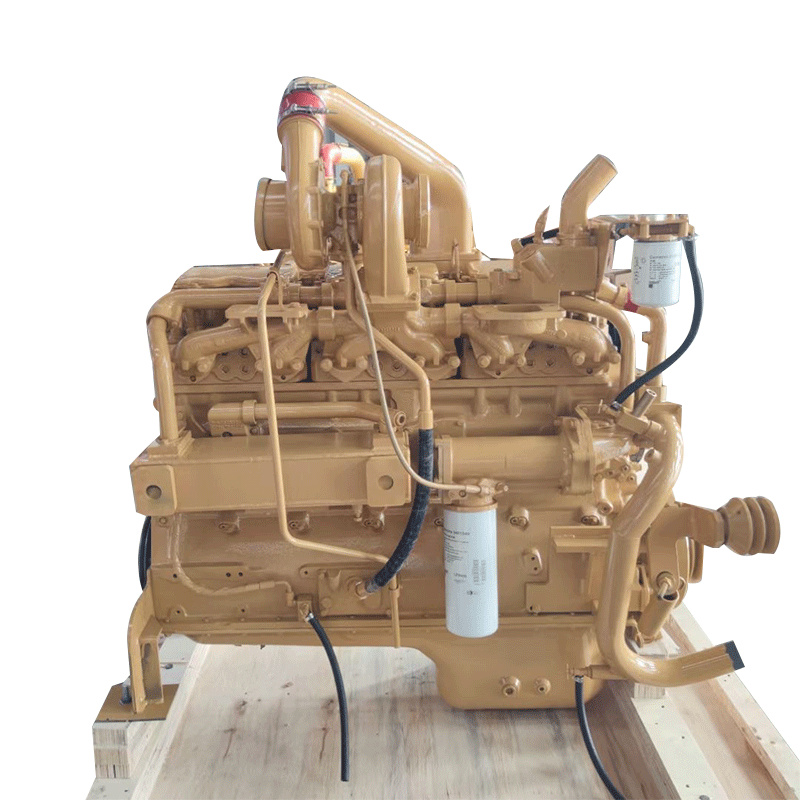

NTA855 Engine Assembly (1)
NTA855 Engine Assembly (3)
NTA855 Engine Assembly (2)
NTA855 Engine Assembly (6)
NTA855 Engine Assembly (5)
NTA855 Engine Assembly (4)
